SMT Automation Solution
SMT production line to achieve automatic production, can reduce labor, save labor costs, reduce downtime, improve production efficiency.
Nextas PCB/PCBA fixture assembly and disassembly equipment is specially designed for SMT production line, which can realize the automation production requirements of at least four stations from PCB to PCBA production line.
lInstall PCB into fixture before passing mounter
lRemove PCB from fixture after passing mounter
lInstall PCBA into fixture before passing labeler
lRemove PCBA from fixture after passing labeler
Nextas Mounting machine is an automatic mounting equipment designed for SMT production line, smart phone and tablet PC assembly line. It can quickly mount semi-finished products on PCBA, mobile phone and tablet PC production line, including foam cotton, two-dimensional code, graphite sheet, heat-conducting silica gel, heat-dissipating copper foil, electromagnetic shielding cover and other materials.

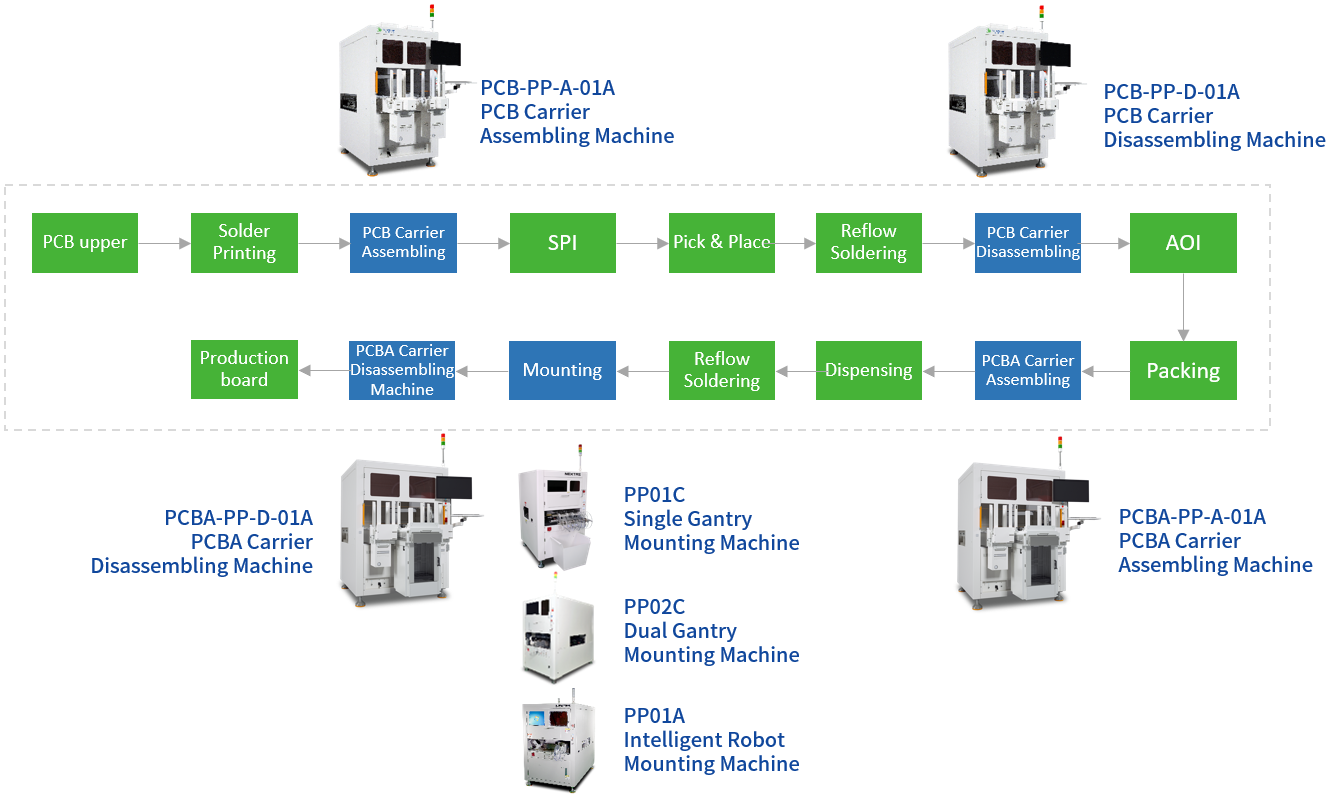

- Technical operation
-
Automatic loadingPCB-PP-A-01APCB Carrier Assembly Machine
-
Automatic board removalPCB-PP-D-01APCB Carrier Disassembly Machine
-
PCBA mountingPCBA-PP-A-01APCBA Carrier Assembly Machine
-

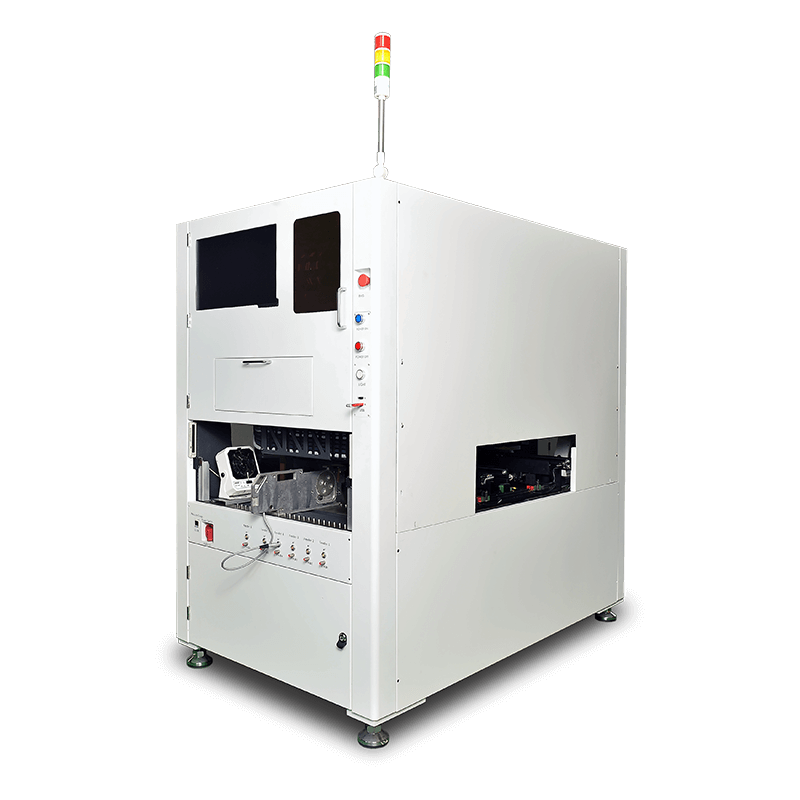

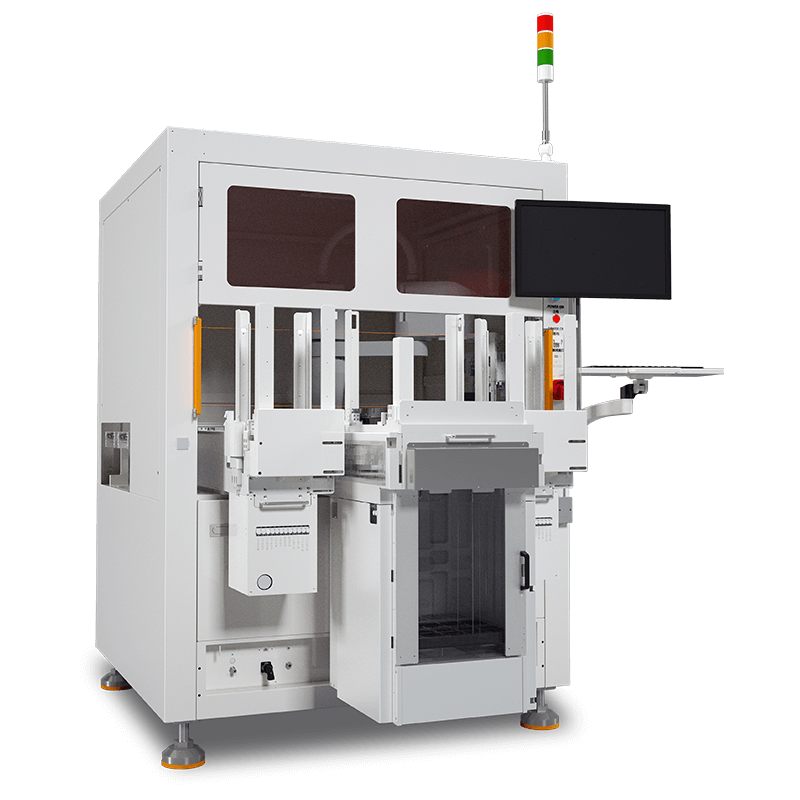

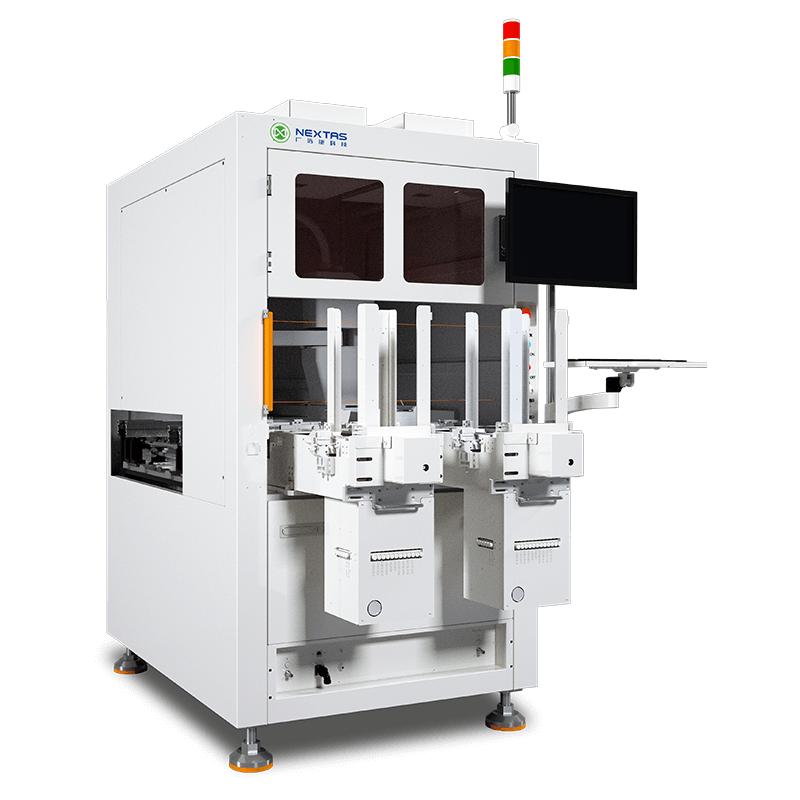

LabelingPP01CSingle Gantry Mounting HandlerPP02CDual Gantry Mounting HandlerPP01AAutomated Robotic Mounting Handler
-
PCBA disassemblyPCBA-PP-A-01APCBA Carrier Disassembly Machine
